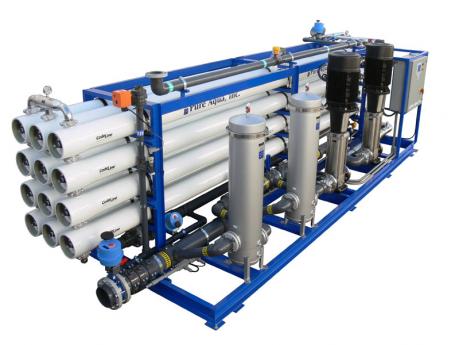

Industrial Brackish Water RO-500
 |
Standard Features
Reverse osmosis, also known as hyper filtration, is used to purify water and remove salts and other impurities. It is also capable of rejecting bacteria, sugars, proteins, particles, dyes, and other constituents that have a molecular weight of greater than 150-250 dalton.
- 8" TFC spiral wound membranes
- FRP membrane housing
- Epoxy painted steel frame
- Stainless steel multi-stage pump with TEFC motor
- 5 micron cartridge prefilter
- Power supply: 460V/3Ph/60Hz
- PLC based control panel
- Programmable time delay and set points
- Status lamps
- 115V/60Hz control voltage
- Motor starter
- NEMA 12 enclosure with disconnect and interlocking rotary handle
- Low pressure switch
- High pressure switch
- Liquid filled pressure gauges, panel mount for pump suction, membrane feed, and final concentrate
- Permeate conductivity monitor
- Permeate & concentrate flow meters
| Industrial Brackish Water Reverse Osmosis Systems RO-500 | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model # | Permeate | Membranes | 1000ppm | Dimensions | Approximate Weight | |||
| Motor HP at | ||||||||
| GPD | M3/D | Array | Qty | 60 Hz | 50 Hz | L"xW"xH" | Lbs | |
| TW-225K-5680 | 225,000 | 852 | 3:2 | 30 | 40 | 40 | 300x72x80 | 4,500 |
| TW-270K-6680 | 270,000 | 1,022 | 4:2 | 36 | 50 | 50 | 300x72x80 | 4,900 |
| TW-320K-7680 | 320,000 | 1,211 | 5:2 | 42 | 50 | 50 | 300x72x80 | 5,200 |
| TW-360K-8680 | 360,000 | 1,363 | 5:3 | 48 | 60 | 80 | 300x72x80 | 5,750 |
| TW-410K-9680 | 410,000 | 1,552 | 6:3 | 54 | 60 | 80 | 300x72x80 | 6,250 |
| TW-450K-10680 | 450,000 | 1,703 | 7:3 | 60 | 80 | 80 | 300x72x80 | 7,500 |
| TW-500K-11680 | 500,000 | 1,893 | 8:3 | 66 | 80 | 100 | 300x72x80 | 8,500 |
| TW-550K-11780 | 550,000 | 2,082 | 11:0 | 77 | 100 | 100 | 350x78x90 | 9,500 |
| TW-600K-13780 | 600,000 | 2,270 | 13:0 | 91 | 100 | 100 | 350x78x90 | 10,500 |
