Parks

High Grade Vinylester Tank Liner Fiber-free inner surface suitable for all standard water treatment applications, including de-ionization Offers wide chemical resistance; not adversely affected by regenerating chemicals (acid-caustic) or DI water Continuous stands of fiberglass reinforced with high strength epoxy resin Rustproof and corrosion-resistant Strong, Filament Wound Outer Laminate

Precision Injection-Molded Threaded Tank Openings Filament wound fiberglass flanged top and bottom openings are also available Both accommodate all industry standard valves and fittings

Full Coupling, Threaded Dome and Side Hole Options Available in all 24" to 48" vinylester tanks Dome holes offered in 1.5" and 2" configurations Dome holes offered in 1.5" and 2" configurations Side holes (up to two per tank) available in 2" and 3" diameters

Operating Parameters Maximum operating pressure: 150 PSI (10.2 BAR) Maximum operating temperature: 120 F (49 C)

Tank Connections The following are available for bothsingle and double entry tanks: - 4" - 8" UN - 6" - 8" UN - 4.5" Buttress - 6" Flanged B, C, D dimensions for top and/or bottom flangedopening tanks: -Top Flange: Increase tank height listed by 2.5" (6.4 cm) for 24", 30", and 36" tanks, and by 3" (7.6 cm) for 42" and 48" tanks. - Bottom Flange: Clearance from the floor to tank bottom is reduced by 2.5" (6.4 cm) for 24", 30", and 36" tanks, and by 3" (7.6 cm) for 42" and 48" tanks.

Industry Approved Tanks designed and tested to meet industry standards, ensuring top field performance: B, C, D dimensions for top and/or bottom flangedopening tanks: - NSF Standard 44 - UDT

Warranty All commercial/light industrial tanks are backed by an exclusive limited manufacturer’s warranty: - Sizes 24" through 48": 5-year limited warranty - 2-year limited warranty in de-ionization application

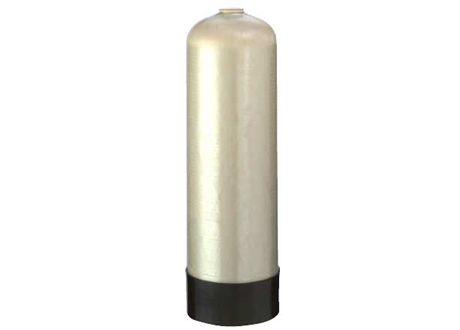

Residential / Light Commercial Tanks

Seamless, One-Piece ABS Tank Liner Blow molded ABS shell promotes superior adhesion to filament wound outer laminate Smooth, fiber-free inner surface with high chemical resistance Not adversely affected by regenerating chemicals (acid-caustic) or DI water Strong, Filament Wound Outer Laminate Continuous strands of fiberglass reinforced with high strength epoxy resin; Excellent impact and abrasion resistance Rustproof and corrosion-resistant

Precision Injection - Molded Threads

• Accommodate all industry standard valves and fittings

Dome Hole Option

• Available in 8" through 16" diameter tanks
• Injection molded ABS fitting provides a 1" opening with full internal threads
• Fill cap features o-ring seal with straight thread; no tapered thread binding on the tank wall

Operating Parameters

• Maximum operating pressure: 150 PSI (10.2 BAR)
• Maximum operating temperature: 120 F (49 C)

Industry Approved

• Tanks designed and tested to meet industry standards, ensuring top field performance:
  • NSFStandard 44


  • – UDT
  • – WQA Standard S-100 Warranty

• All residential and light commercial tanks are backed by an exclusive limited manufacturer’s warranty:
  • Sizes 5"-13": 10-year limited warranty
  • Sizes 14"-24": 5-year limited warranty

• Residential/Light CommercialTank Fittings and Accessories
  • A full line of closures, adapters, hubs, laterals and other fittings and accessories are available from Park
