Applications - Reduced
liability with on-site destruction of hazardous waste.
- Up
to 10 gpm maximum throughput.
- COD destruction.
- Cyanide, MTBE destruction.
- Drinking
water, process water, waste water applications.
- Ultra
pure water protection.
- Effective against chloroethylene’s,
chlorinated solvents, pesticides, polychlorinated biphenyls, phenolic compounds,
jet fuel and all hydrocarbons.
- Specific contaminant
destruction such as oil, soaps and other contaminants that can be reduced below
discharge limits.

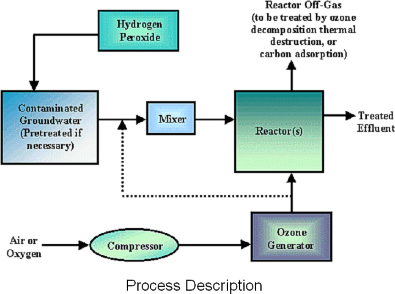

Complete
Waste Destruction Chemistry
- Designed for on-site organic waste destruction
- Hydrogen Peroxide and/or Ozone react to produce hydroxyl
radicals (OH-)
- UV light multiplies the effectiveness
of OH-
- Low pressure, high output UV for peak
performance at all temperatures.
- Superior TOC
(Total Oxidizable Carbons) reduction
- Indiscriminate
destruction of Organic compounds
- No waste produced,
onsite destruction
Standard
Features  Stainless Steel construction
- Complete system with all components skid mounted
- Modular UV reactors that can be added to a base unit
- Onboard Ozone and Oxygen production
- Low
pressure, high output or Amalgam lamps
- Continuous
process cycle with various output volumes
- Small
footprint ?base package 36”x 54? x 72?high
- Complete
NEMA 4X control panel:
- PLC control
- Simple lights and switches
- Automatic chemical dispensing
- Pump control
- Operational alarms and
communication  |  | | Stainless
Steel Reactor Chamber | Easy
UV Bulb Replacement | Options
- All Stainless Steel piping
- Secondary
containment for the entire skid
- Remote Ozone
monitor
- Degassifier and ozone destruction
- Various communication options for remote monitoring
- Touchscreen as an operator interface
- Remote
mounted control panel also available
- Transfer
pump station
- Remote tank level sensors for
auto control
Operational
Guidelines - Fully automatic operation
- Bulbs reduce output 10% every 8000 hours
- Water
must be clear to allow for benefit of UV
- Suited
to organic concentrations below 5000ppm
Materials
of Construction - 316 Polished SS
reactors
- Skids are powder coated steel
- Std control panel powder coated steel
Utility
Specifications
| Detail | Specification | Description | | Water Inlet Connection | 1.5" <font> | Slip union | | Effluent Outlet Connection | 1.5<font> | Slip union | | Drain Connection | 1" <font> | Slip | | Module Light Output | 2.1 kW | | | Module Size | 54"x 32"x 75" <font> | | | Current Draw | 35 amps | Base module | | Current Draw
(additional mods) | 50 gpm | Stainless | | Process Pump | 50 gpm | Stainless | | Metering Pump | 3.2g ph | | | Flow Control | Rotometer/Manual Valve | PVC | | Ozone Generation | 29 gph | 10 psi | | Alarms | Yes | Flow, pressure, temp | | PLC Control Panel | Push Button Start | NEMA 4X |
Available
Models
| Low Pressure | Output | Amalgam | Output | | AOT-100 | 2.1 kW | AOT-100A | 5.2 kW | | AOT-200 | 4.2 kW | AOT-200A | 10.4 kW | | AOT-300 | 6.3 kW | AOT-300A | 15.6 kW | | AOT-400 | 8.4 kW | AOT-400A | 20.8 kW | Click
here for pdf data sheet
|
